Yebelay Berehan - Spatial Data Analysis Training

Type	Spatial Data Formats
Text Files	CSV: Enhanced with spatial attributes (e.g., coordinates). GeoJSON: Representing points, lines, polygons, and metadata. GML: for representing geographic features and metadata. KML: used for Google Earth and online maps.
Binary/Compressed	Shapefile: A multi-file format storing vector data (geometry and attributes). GeoPDF: Geospatially enabled PDF with embedded layers and coordinate data. Geopackage: supporting both vector and raster data. PBF: Binary format for OpenStreetMap data, efficient for large datasets.
Images	GeoTIFF: metadata for raster data. JPEG2000: Compressed image format for multi-resolution datasets. ECW: Compressed raster format optimized for large imagery datasets.
Databases	Spatialite: supporting spatial data and functions. PostGIS: enabling advanced spatial queries and storage. Oracle Spatial: supporting 3D and network data. ArcGIS Geodatabase: spatial database format for managing geographic datasets.

Basic R Packages for Spatial Data Analysis

sf and stars

These packages provide robust frameworks for handling spatial data in R:
sf (simple features): Designed for handling vector data like points, lines, and polygons.
stars: Focused on handling raster data (e.g., satellite images, grids) and spatio-temporal arrays.
Both packages rely on external libraries for specific tasks:
- GDAL/OGR: Handles the input and output of spatial data.
  - Reads and writes spatial files likeshapefiles (.shp), GeoTIFFs, and others.
- PROJ: Manages Coordinate Reference Systems (CRS), ensuring spatial data aligns correctly on a map.
  - PROJ handles tasks like reprojecting data into different CRS.

spdep: Spatial dependence and autocorrelation analysis.
- Create spatial weights matrices.
- Test for spatial autocorrelation (Moran’s I, Geary’s C).
- Perform spatial regression models.
spatstat: Spatial point pattern analysis.
- Analyze point patterns (e.g., clustering, regularity). Fit spatial point process models.
- Perform kernel density estimation and spatial simulations.
gstat: Geostatistical modeling and interpolation.
- Variogram modeling, Ordinary and universal kriging, and Multivariate analysis via cokriging.
tmap: Simplifies creating static and interactive thematic maps, works with sf objects.
leaflet: Interactive maps for web.
mapview for interactive web mapping

Install required Packages

# Install required packages
pack <- c("sf", "stars", "gstat", "spdep", "spatstat", "leaflet",
          "tmap", "mapview")

install.packages(pack)

# Load all packages
library(sf)
library(stars)
library(gstat)
library(spdep)
library(spatstat)
library(leaflet)
library(tmap)
library(mapview)


# Or we can install all at once using
lapply(pack, library, character.only = TRUE)

`sf()` package

sf package (simple features = points, lines, polygons) is the new.
Therefore, we focus on the sf package for the following reasons:
- sf ensures fast reading and writing of data
- sf provides enhanced plotting performance
- sf objects can be treated as data frames in most operations
- Geographic data is stored in the special geometry column.
- sf functions can be combined using %>% operator and works well with the tidyverse collection of R packages.
- sf function names are relatively consistent and intuitive (all begin with st_)
The sf package is a modern alternative to the traditional sp, rgeos, and rgdal packages.

How simple features in R are organized?

The three classes used to represent simple features are:

sf, the table (data.frame) with feature attributes and feature geometries, which contains
sfc, the list-column with the geometries for each feature (record), which is composed of
sfg, the feature geometry of an individual simple feature.

**`st_*()` functions**

Common functions to manipulate sf objects include the following:

st_read() reads a sf object,
st_write() writes a sf object,
st_crs() gets or sets a new coordinate reference system (CRS),
st_transform() transforms data to a new CRS,
st_intersection() intersects sf objects,
st_union() combines several sf objects into one,
st_simplify() simplifies a sf object,
st_coordinates() retrieves coordinates of a sf object,
st_as_sf() converts a foreign object to a sf object.

Source of some free spatial data

We can dounload some free online spatial data at
- Africa Geoportal: download
- Ethiopia Healthsites download at
- Ethiopia FEWS NET Admin Boundaries download at:
We can read a shapefile or a sf object with the st_read() function of sf.
For example, here we read the ET_Admin3_2023.shp which contains the region, zone and districts of Ethiopia.

download, read and understand Shapefiles with `sf`

Let us download data at here, Ethiopian administrative shapefile data and save from our Project folder with name Ethadmin3_2023.

Code

library(sf)
ethA3_shape <- st_read("Ethadmin3_2023/ET_Admin3_2023.shp", quiet = TRUE)

select and rename variables using dplyr package.

Code

library(dplyr)
ethR_shape <- ethA3_shape |>
  select(FNID, ADMIN0, ADMIN1, ADMIN2, ADMIN3, Shape_Leng,
         Shape_Area, FNID_A1, geometry) |>
  rename(Country = ADMIN0, Region = ADMIN1, Zone = ADMIN2, Woreda = ADMIN3)

Examine

Below are a few common functions that use to examine our data. They are not from the sf package but they are very useful.

Code

# View structure and summary
head(ethR_shape, 3)

Simple feature collection with 3 features and 8 fields
Geometry type: MULTIPOLYGON
Dimension:     XY
Bounding box:  xmin: 37.51639 ymin: 13.68366 xmax: 38.56573 ymax: 14.89357
Geodetic CRS:  WGS 84
            FNID  Country Region             Zone         Woreda Shape_Leng
1 ET2023A3010101 Ethiopia Tigray Northwest Tigray Tahtay Adiyabo   3.926501
2 ET2023A3010103 Ethiopia Tigray Northwest Tigray           Zana   1.109448
3 ET2023A3010104 Ethiopia Tigray Northwest Tigray  Tahtay Koraro   2.275121
  Shape_Area    FNID_A1                       geometry
1 0.37426931 ET2023A301 MULTIPOLYGON (((37.52639 14...
2 0.04774669 ET2023A301 MULTIPOLYGON (((38.497 13.9...
3 0.06962166 ET2023A301 MULTIPOLYGON (((38.43626 14...

The sf object ethR_shape is a data.frame containing a collection with
- 1141 simple features (rows) and 9 attributes (columns) plus a list-column with the geometry of each feature.

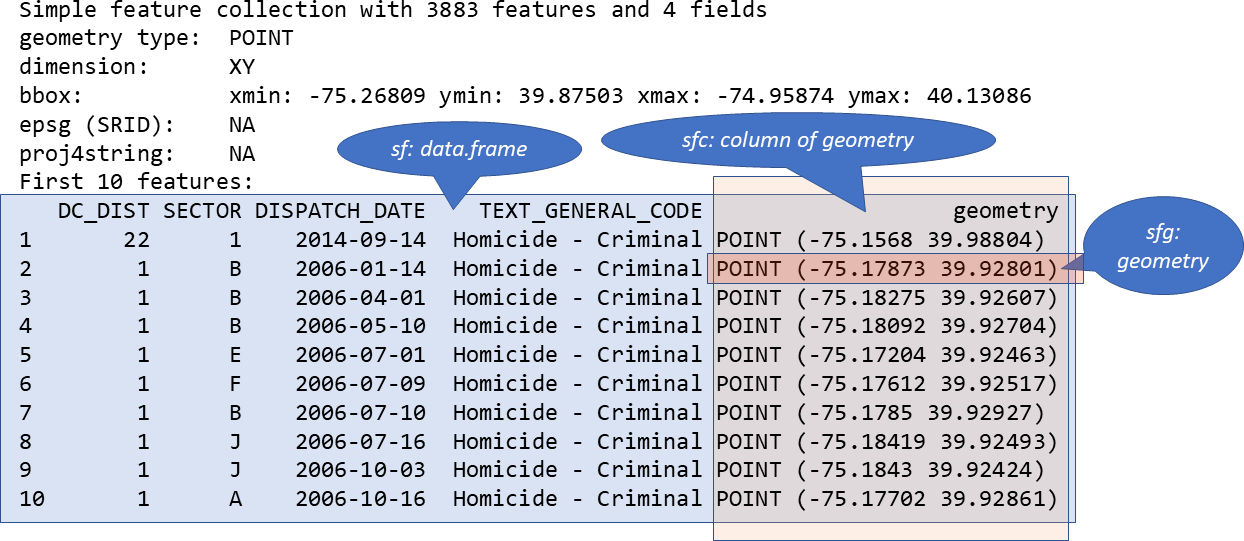

A sf object contains the following objects of class sf, sfc and sfg:
- sf (simple feature): each row of the data.frame is a single simple feature consisting of attributes and geometry.
- sfc (simple feature geometry list-column): the geometry column of the data.frame is a list-column of class sfc with the geometry of each simple feature.
- sfg (simple feature geometry): each of the rows of the sfc list-column corresponds to the simple feature geometry (sfg) of a single simple feature.
The sf package stores geometric features in a data frame.
Geographic data is stored in the special geometry column.

Code

str(ethR_shape) # data structure

Inspect key columns and summary:

Code

# Display column names
colnames(ethR_shape)

[1] "FNID"       "Country"    "Region"     "Zone"       "Woreda"
[6] "Shape_Leng" "Shape_Area" "FNID_A1"    "geometry"

Subsetting Spatial Data Frames

Focus on specific regions, zones, or woredas:

Code

# Filter for a specific region (e.g., "Tigray")
tigray_data <- ethR_shape %>%
  filter(Region == "Tigray")

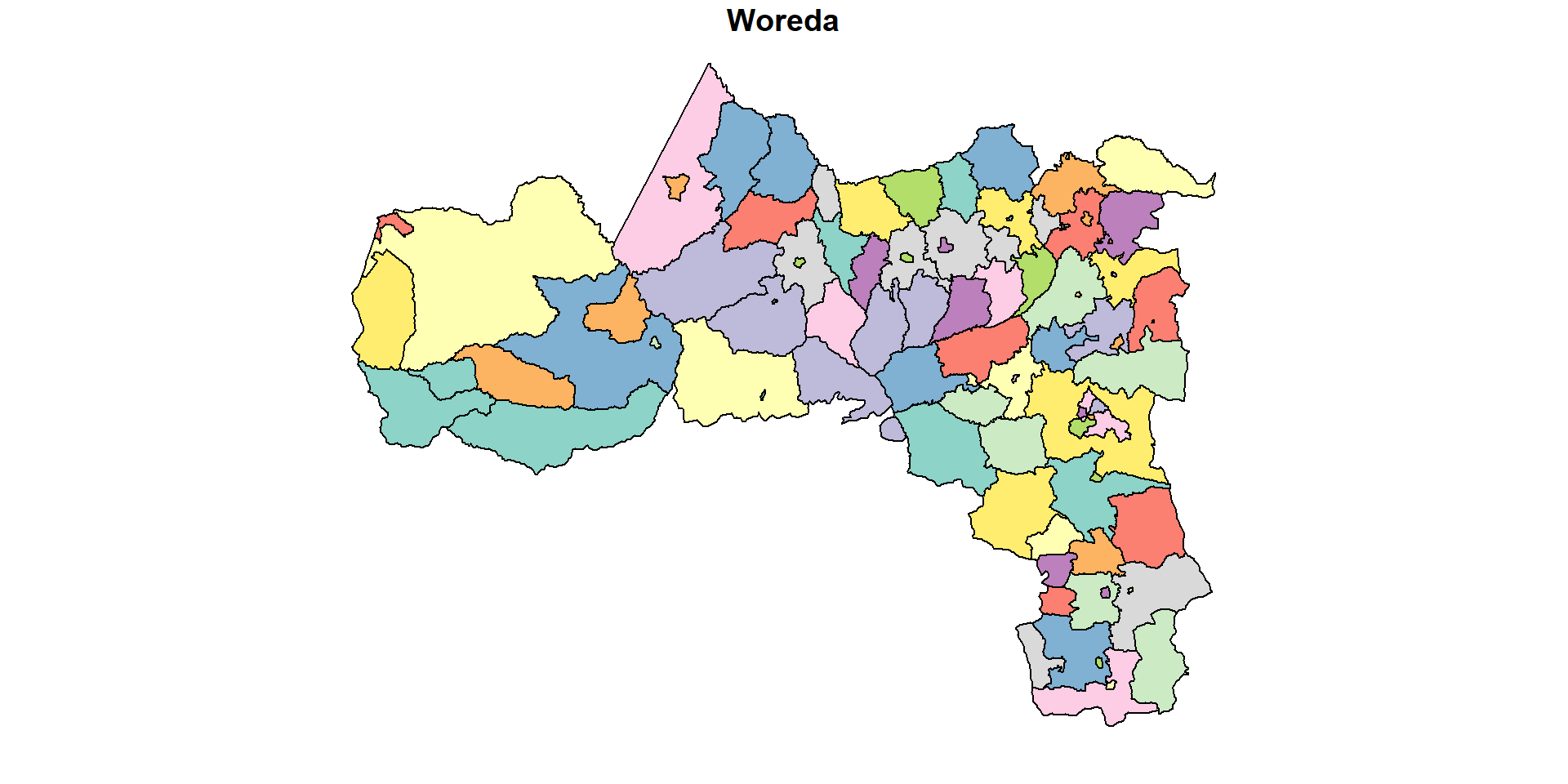

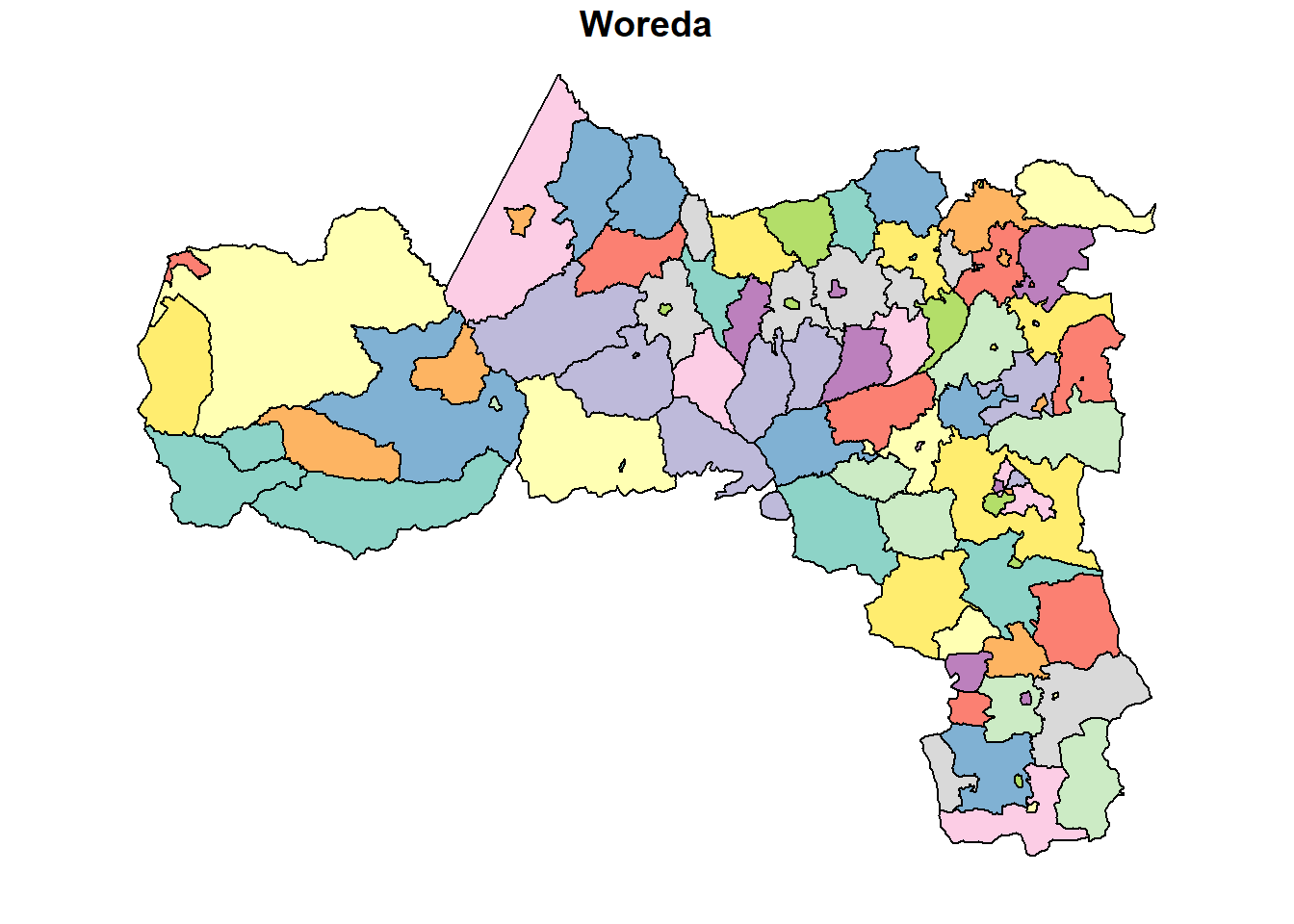

plot(tigray_data["Woreda"])

Code

# Filter for a specific woreda (e.g., "Tahtay Adiyabo")
tahtay_adiyabo <- ethR_shape %>%
  filter(Woreda == "Tahtay Adiyabo")

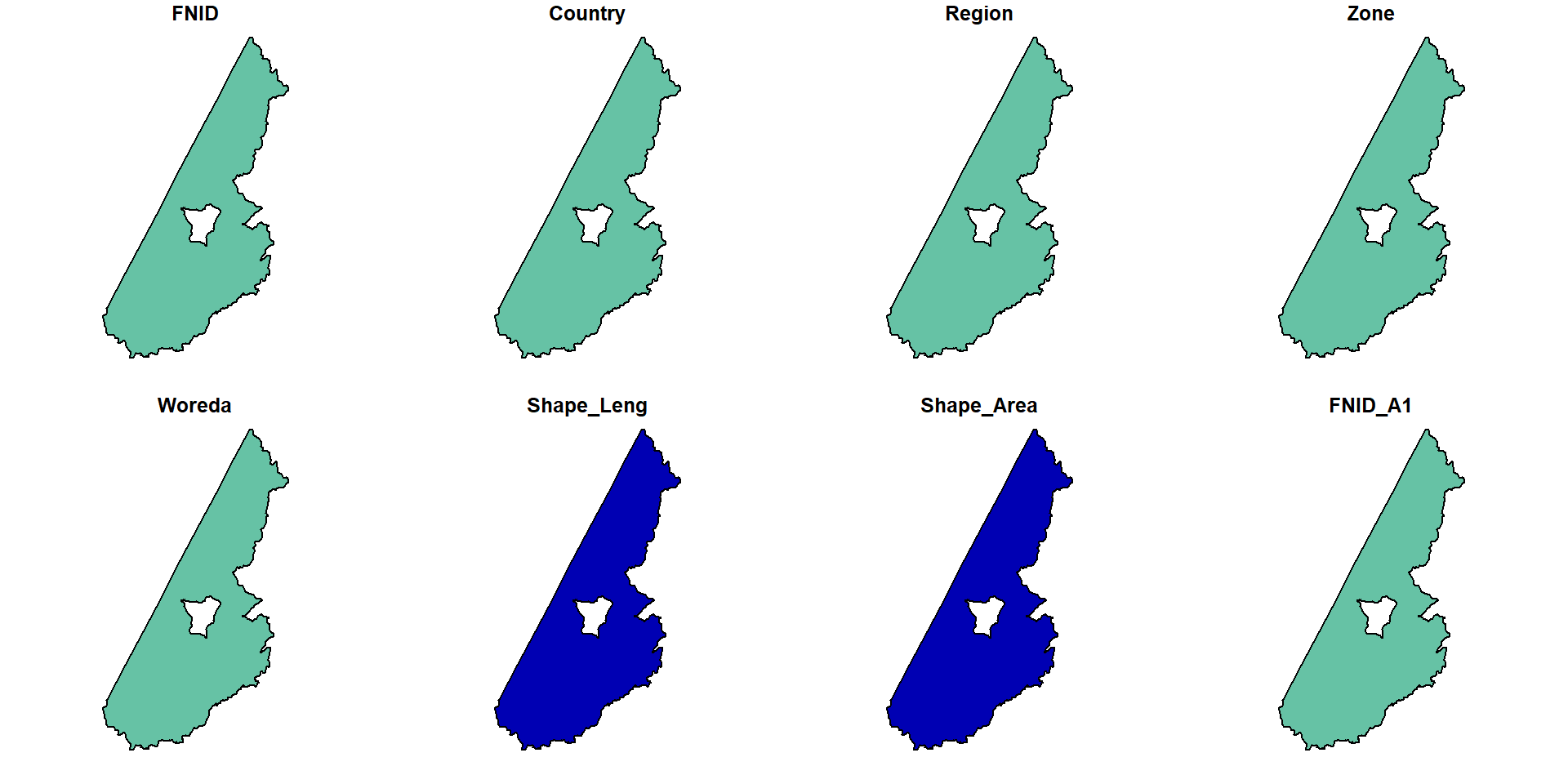

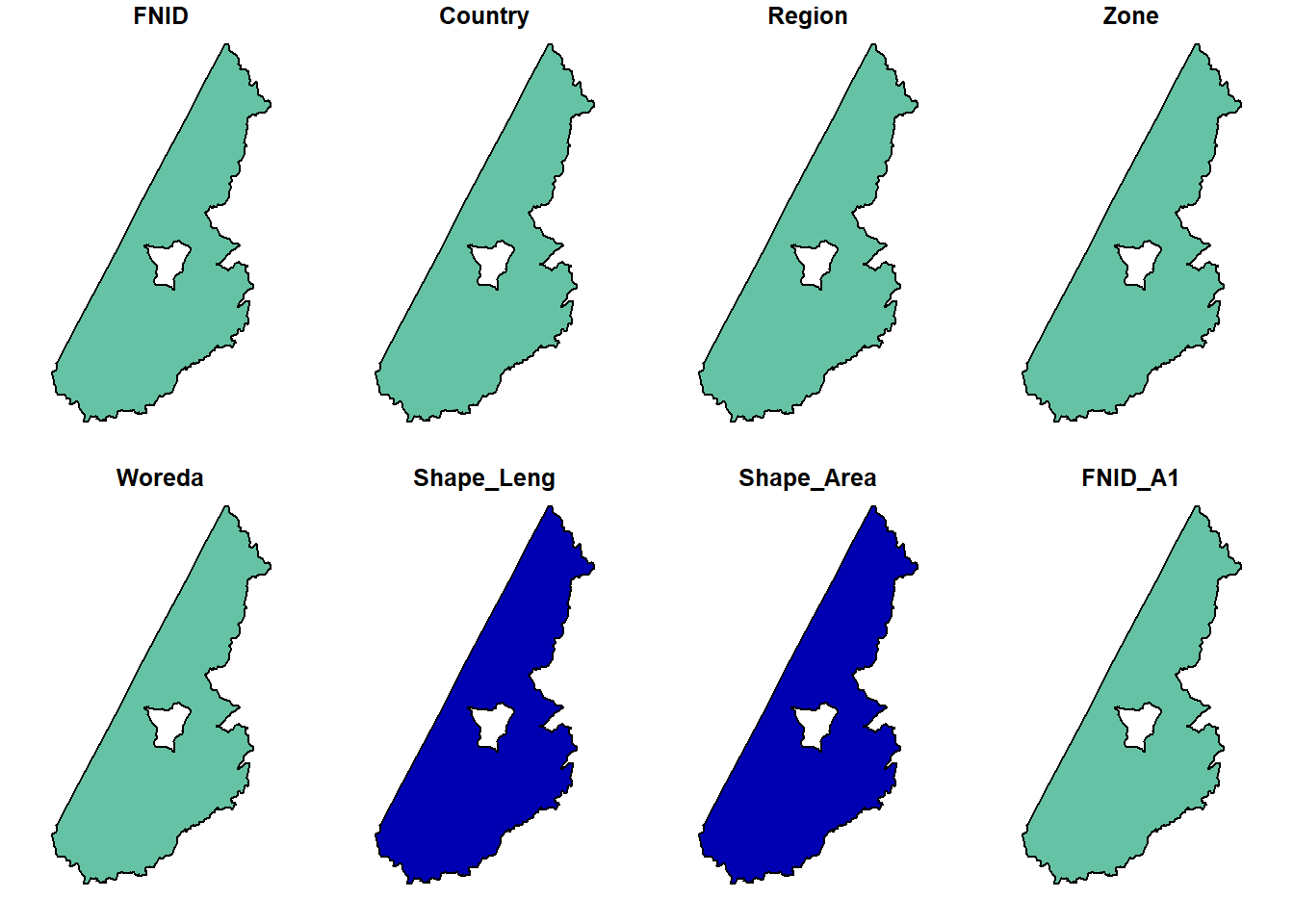

plot(tahtay_adiyabo)

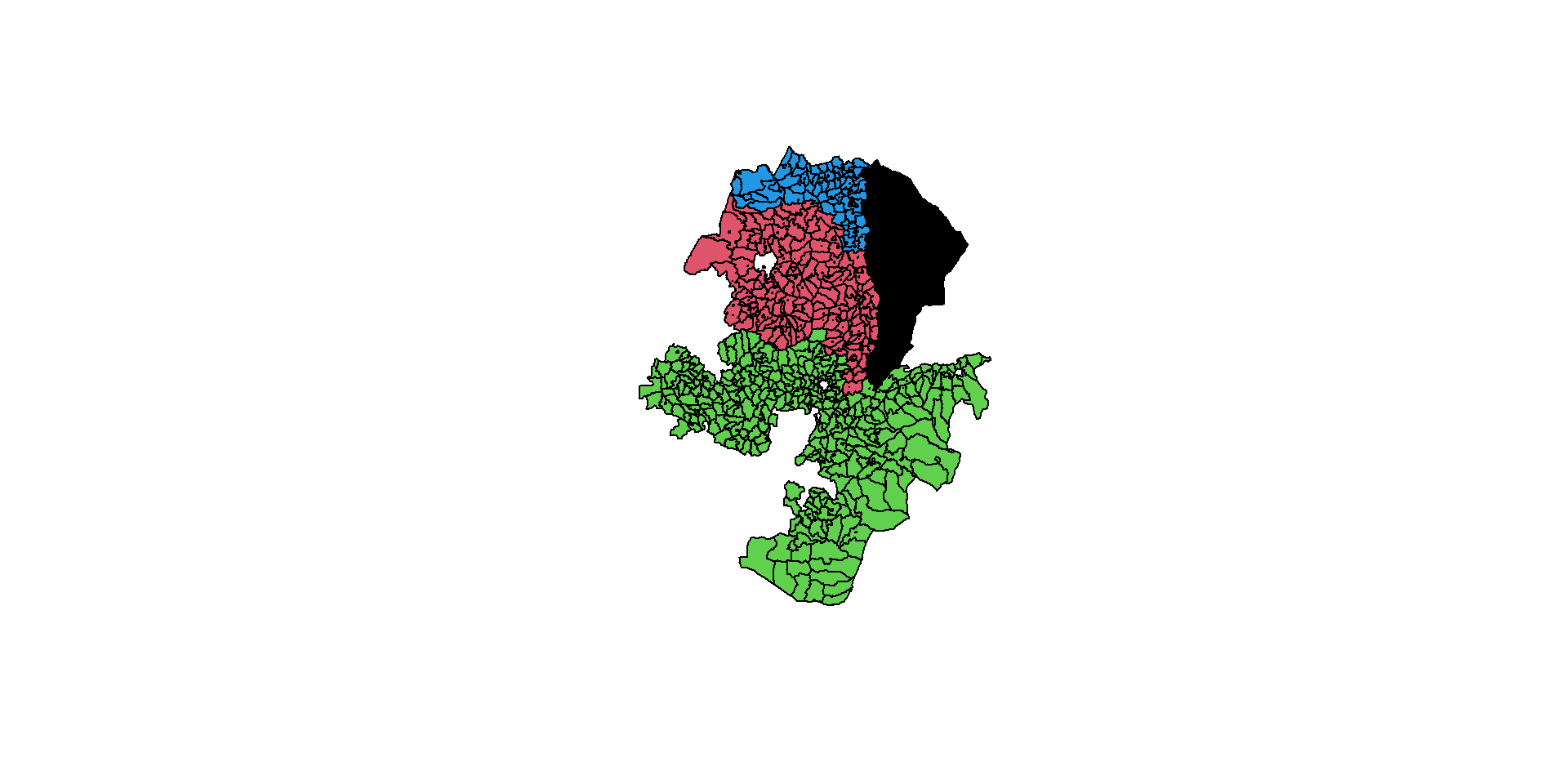

If we are interested in mapping something in the 4 regions of country: Tigray, Afar, Amhara, Oromia. The Region column in the ethR_shape.shp contains the names of each region. We will use that as our subsetting column. Let’s call it region_4.

Code

# Subset dataset to include only Four-regions.
fourR <- c("Tigray", "Afar", "Amhara", "Oromia")
region_4 <- ethR_shape %>%
  subset(Region %in% fourR)

plot(region_4$geometry, col = as.factor(region_4$Region))

Spatial Transformations

Reprojection is the transformation of geometry coordinates, from one CRS to another.
It is an important part of spatial analysis workflow, since we often need to:
- Transform several layers into the same projection, so that they can be displayed one on top of the other or so that they can be subject to a spatial operator

A vector layer can be reprojected with st_transform.

The crs can be specified in one of four ways:
- An EPSG code (e.g., 4326)
- A PROJ4 string (e.g., “+proj=longlat +datum=WGS84 +no_defs”)
- A WKT string
- A crs object of another layer, as returned by st_crs

Convert to a different coordinate reference system if needed:

Code

st_crs(ethR_shape)            # Check CRS

Coordinate Reference System:
  User input: WGS 84
  wkt:
GEOGCRS["WGS 84",
    DATUM["World Geodetic System 1984",
        ELLIPSOID["WGS 84",6378137,298.257223563,
            LENGTHUNIT["metre",1]]],
    PRIMEM["Greenwich",0,
        ANGLEUNIT["degree",0.0174532925199433]],
    CS[ellipsoidal,2],
        AXIS["latitude",north,
            ORDER[1],
            ANGLEUNIT["degree",0.0174532925199433]],
        AXIS["longitude",east,
            ORDER[2],
            ANGLEUNIT["degree",0.0174532925199433]],
    ID["EPSG",4326]]

Code

ethR_shape <- st_transform(ethR_shape, crs = 32637)  # UTM Zone 37N
ethR_shape

Simple feature collection with 1141 features and 8 fields
Geometry type: MULTIPOLYGON
Dimension:     XY
Bounding box:  xmin: -162480.1 ymin: 376090.6 xmax: 1494221 ymax: 1646839
Projected CRS: WGS 84 / UTM zone 37N
First 10 features:
             FNID  Country Region             Zone                Woreda
1  ET2023A3010101 Ethiopia Tigray Northwest Tigray        Tahtay Adiyabo
2  ET2023A3010103 Ethiopia Tigray Northwest Tigray                  Zana
3  ET2023A3010104 Ethiopia Tigray Northwest Tigray         Tahtay Koraro
4  ET2023A3010105 Ethiopia Tigray Northwest Tigray                Asgede
5  ET2023A3010106 Ethiopia Tigray Northwest Tigray              Tselemti
6  ET2023A3010107 Ethiopia Tigray Northwest Tigray          Sheraro town
7  ET2023A3010108 Ethiopia Tigray Northwest Tigray Shire Endaslasie town
8  ET2023A3010109 Ethiopia Tigray Northwest Tigray             Selekleka
9  ET2023A3010110 Ethiopia Tigray Northwest Tigray        Seyemti Adyabo
10 ET2023A3010111 Ethiopia Tigray Northwest Tigray             Adi Daero
   Shape_Leng  Shape_Area    FNID_A1                       geometry
1   3.9265010 0.374269311 ET2023A301 MULTIPOLYGON (((340975.3 15...
2   1.1094484 0.047746694 ET2023A301 MULTIPOLYGON (((445673.4 15...
3   2.2751214 0.069621658 ET2023A301 MULTIPOLYGON (((439235.7 15...
4   2.3274188 0.134341222 ET2023A301 MULTIPOLYGON (((388463.3 15...
5   2.1683607 0.153435050 ET2023A301 MULTIPOLYGON (((381572.5 15...
6   0.4018419 0.006060853 ET2023A301 MULTIPOLYGON (((372705.9 15...
7   0.1477838 0.001221733 ET2023A301 MULTIPOLYGON (((424871 1561...
8   1.3106139 0.033449913 ET2023A301 MULTIPOLYGON (((441545.7 15...
9   1.3794723 0.061695376 ET2023A301 MULTIPOLYGON (((432113.4 16...
10  1.5071146 0.056097753 ET2023A301 MULTIPOLYGON (((428420.1 15...

Visualize the Data

If the changing of our data worked, we should be able to plot our data.. Let’s plot country.

Code

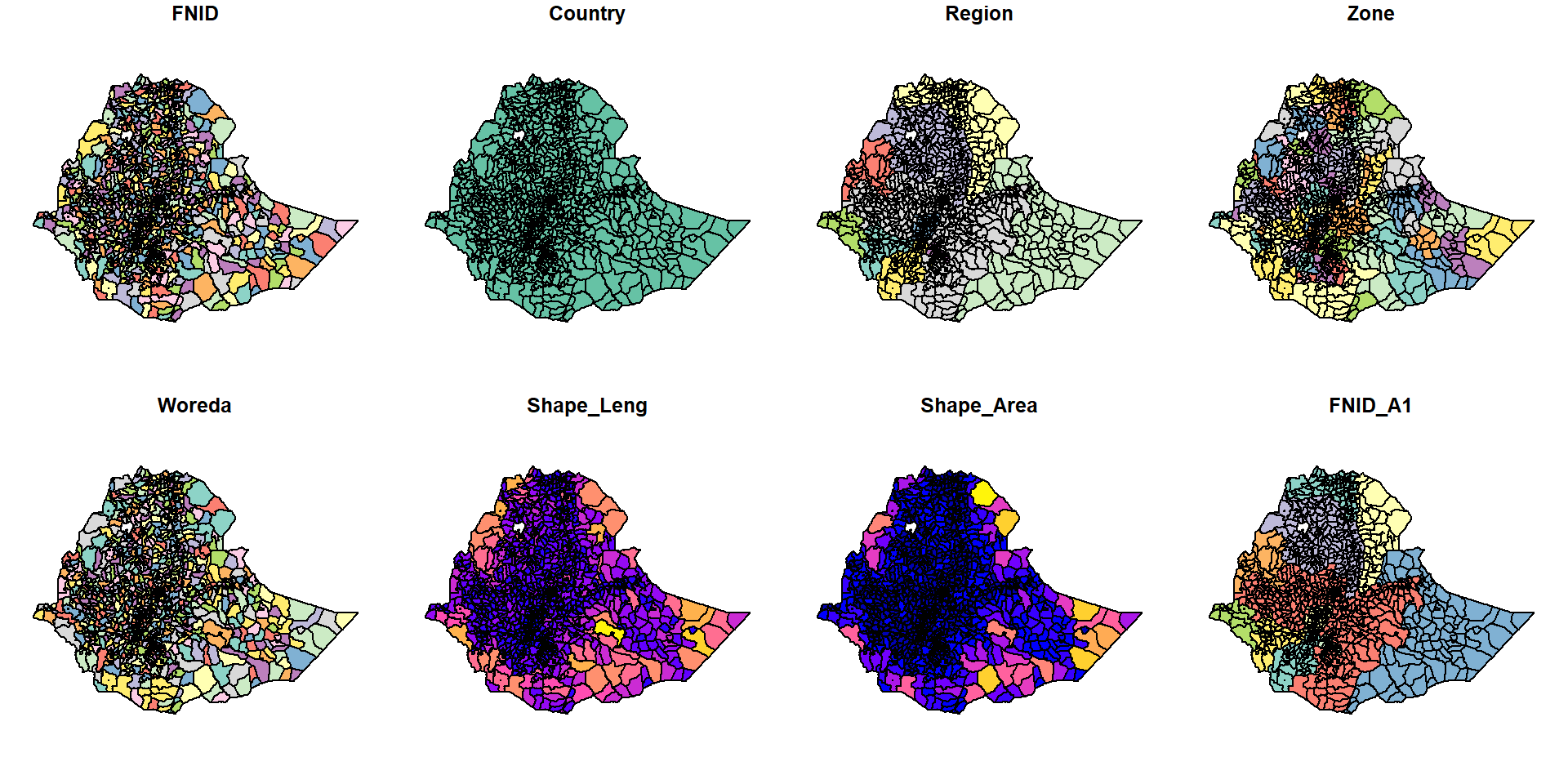

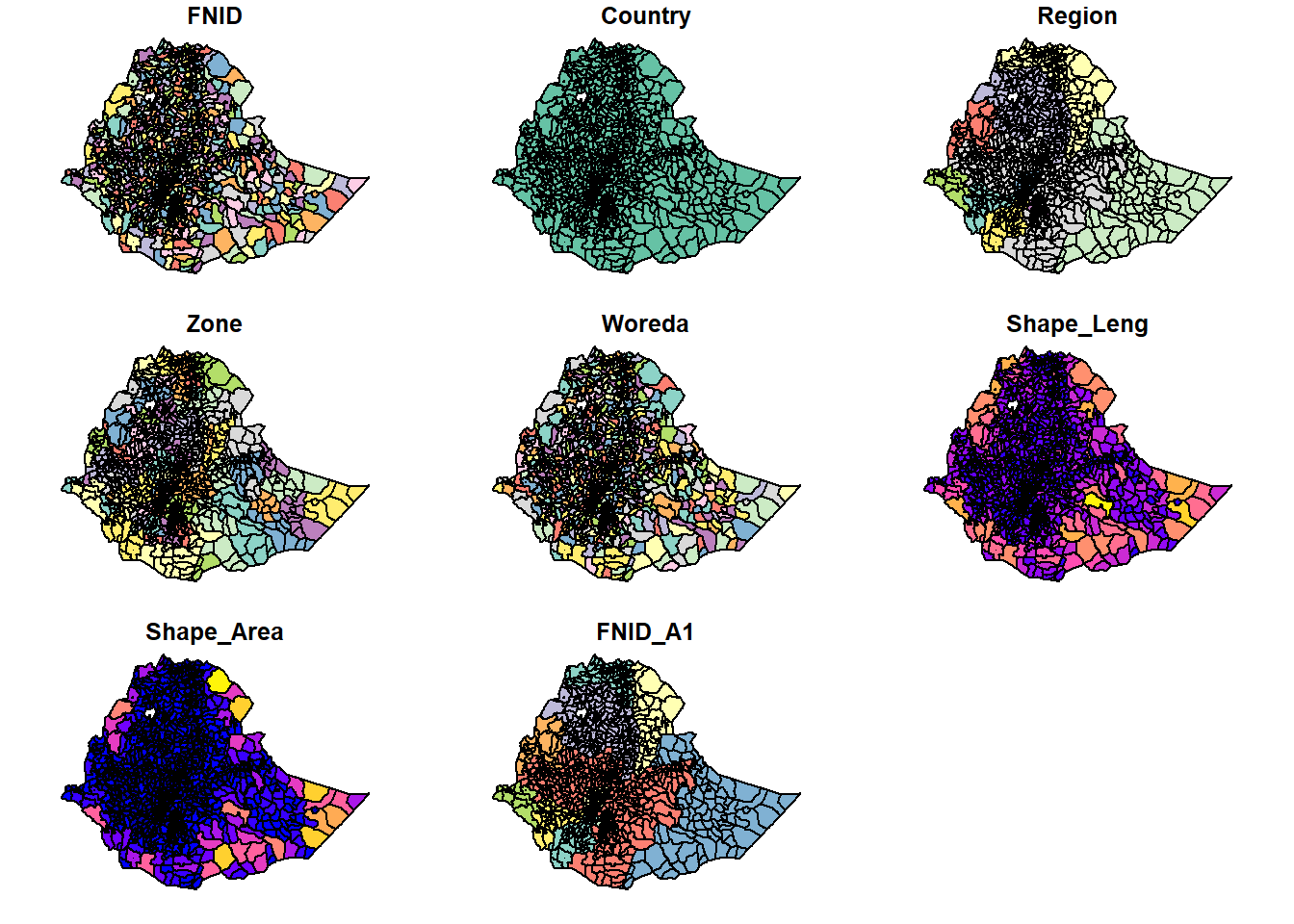

plot(ethR_shape)

So what happened?

Well, if you only use the plot() function, that particular shapefile will plot not only the shapefile geometry but also the geometry for every column in the dataset (except for the geometry column)
- which contains the spatial data
- the other columns are our tabular descriptive data).

Above are 9 maps. How many columns were there? Check code below:

Code

ncol(ethR_shape)-1

[1] 8

checking the number of columns, subtracting 1 as the geometry column doesn’t plot

st_geometry() makes our life easier.
The function goes inside the plot() function and the dataset we want to plot goes inside. Like this:

st_geometry()

Code

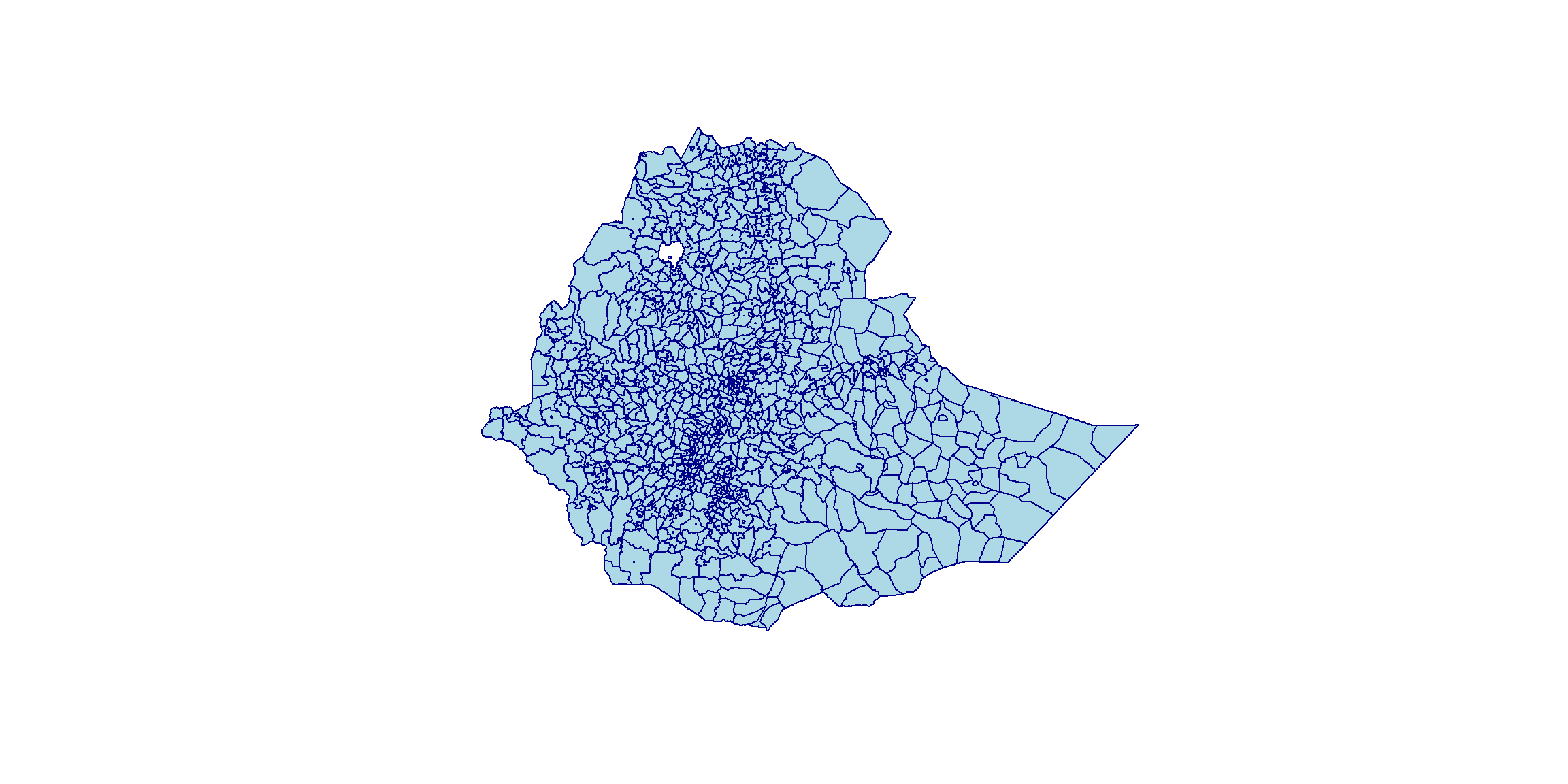

plot(st_geometry(ethR_shape), col = 'lightblue', border = 'darkblue')

If we want just the non-geometric part (the attributes), it can be extracted with st_drop_geometry which returns a data.frame:

Code

attrdata <- st_drop_geometry(ethR_shape)
head(attrdata)

            FNID  Country Region             Zone         Woreda Shape_Leng
1 ET2023A3010101 Ethiopia Tigray Northwest Tigray Tahtay Adiyabo  3.9265010
2 ET2023A3010103 Ethiopia Tigray Northwest Tigray           Zana  1.1094484
3 ET2023A3010104 Ethiopia Tigray Northwest Tigray  Tahtay Koraro  2.2751214
4 ET2023A3010105 Ethiopia Tigray Northwest Tigray         Asgede  2.3274188
5 ET2023A3010106 Ethiopia Tigray Northwest Tigray       Tselemti  2.1683607
6 ET2023A3010107 Ethiopia Tigray Northwest Tigray   Sheraro town  0.4018419
   Shape_Area    FNID_A1
1 0.374269311 ET2023A301
2 0.047746694 ET2023A301
3 0.069621658 ET2023A301
4 0.134341222 ET2023A301
5 0.153435050 ET2023A301
6 0.006060853 ET2023A301

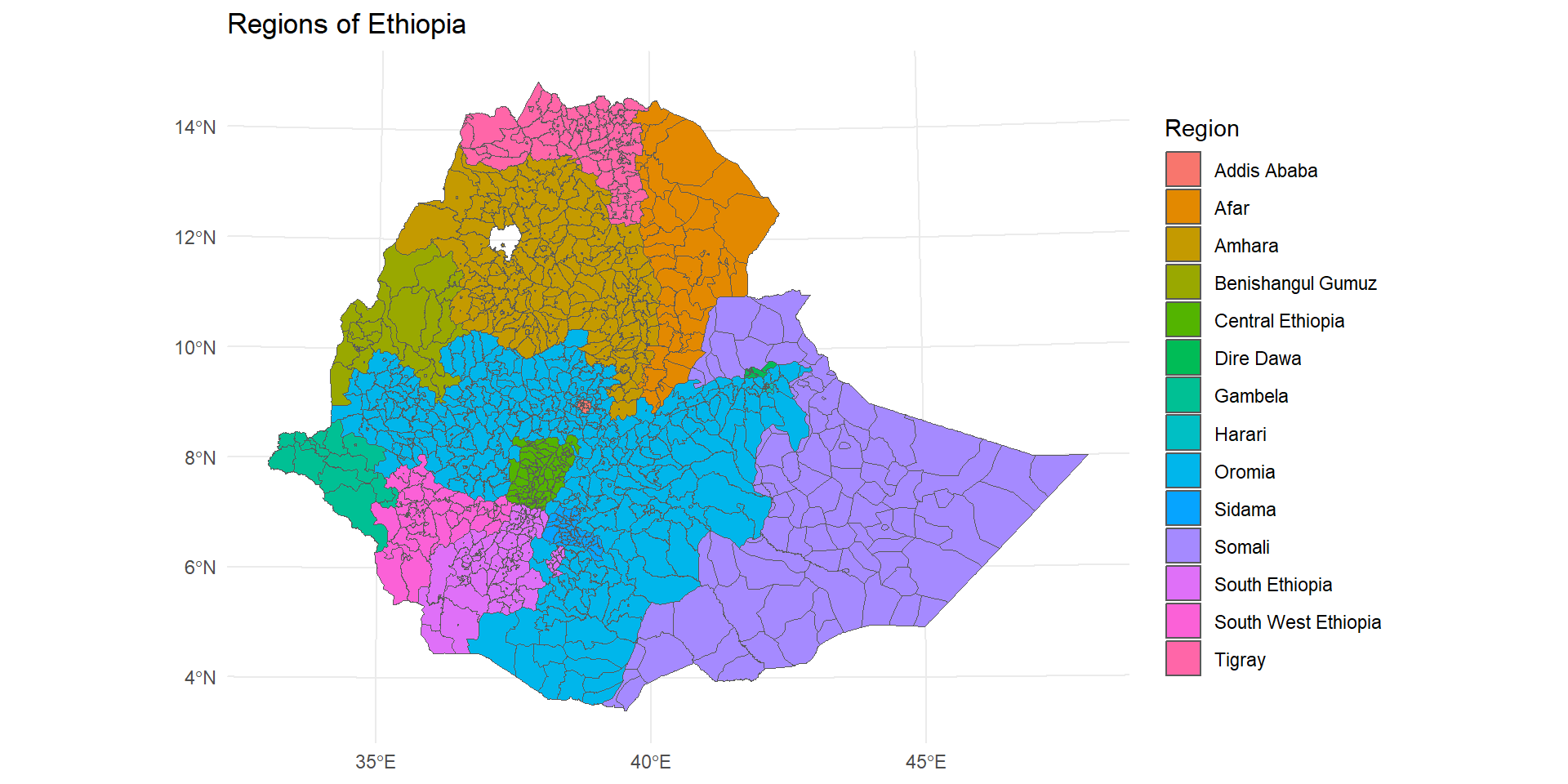

Or use ggplot2

Code

library(ggplot2)
ggplot(ethR_shape) +
  geom_sf(aes(fill = Region)) +
  theme_minimal() +
  labs(title = "Regions of Ethiopia", fill = "Region")

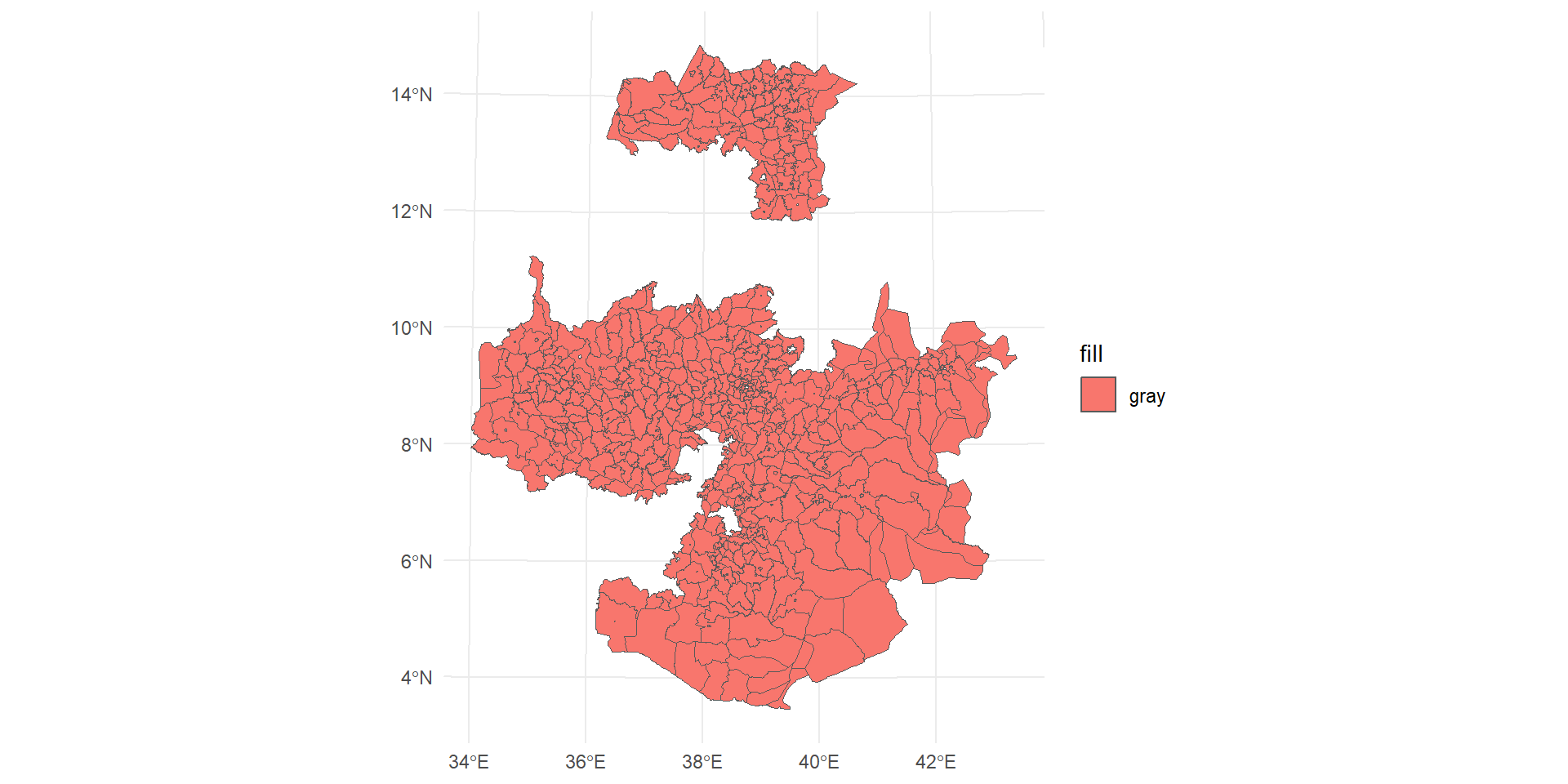

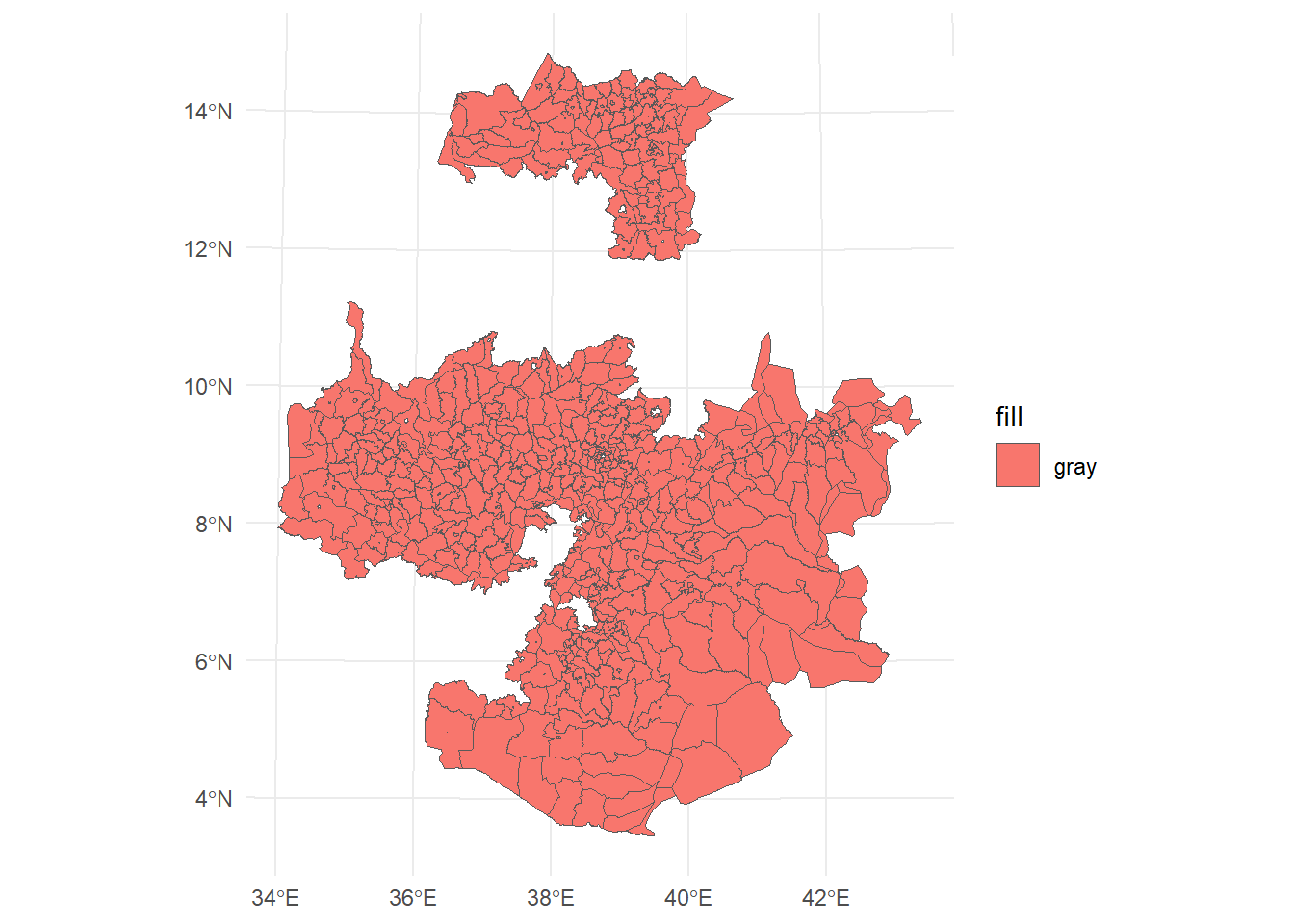

We can delete some of the polygons by taking a subset of the rows of map.

Code

map <- ethR_shape %>%
  st_filter(ethR_shape[ethR_shape$Region %in% c("Tigray", "Oromia"), ])

ggplot(map) +
  geom_sf(aes(fill = "gray")) +
  theme_minimal()

Geometric calculations

Geometric operations on vector layers can conceptually be divided into three groups according to their output:

Numericvalues —Functions that summarize geometrical properties of:
- A single layer—e.g., area, length
- A pair of layers—e.g., distance
Logicalvalues —Functions that evaluate whether a certain condition holds true, regarding:
- A single layer—e.g., geometry is valid
- A pair of layers—e.g., feature A intersects feature B
Spatial layers —Functions that create a new layer based on:
- A single layer—e.g., centroid, buffer
- A pair of layers—e.g., intersection area

Numeric

There are several functions to calculate numeric geometric properties of vector layers in package sf:

st_length—Length
st_area—Area
st_distance—Distance
st_bbox—Bounding box
st_dimension—Dimensions (0 = points, 1 = lines, 2 = polygons)
For example, we can calculate the area of each feature in the ethR_shape layer using st_area.

The result is assigned to a new attribute named area in ethR_shape:

Code

ethR_shape $area = st_area(ethR_shape )
ethR_shape$area = st_area(ethR_shape )
head(ethR_shape, 3)

Simple feature collection with 3 features and 9 fields
Geometry type: MULTIPOLYGON
Dimension:     XY
Bounding box:  xmin: 339878 ymin: 1512792 xmax: 453079 ymax: 1646839
Projected CRS: WGS 84 / UTM zone 37N
            FNID  Country Region             Zone         Woreda Shape_Leng
1 ET2023A3010101 Ethiopia Tigray Northwest Tigray Tahtay Adiyabo   3.926501
2 ET2023A3010103 Ethiopia Tigray Northwest Tigray           Zana   1.109448
3 ET2023A3010104 Ethiopia Tigray Northwest Tigray  Tahtay Koraro   2.275121
  Shape_Area    FNID_A1                       geometry             area
1 0.37426931 ET2023A301 MULTIPOLYGON (((340975.3 15... 2152127259 [m^2]
2 0.04774669 ET2023A301 MULTIPOLYGON (((445673.4 15...  570617621 [m^2]
3 0.06962166 ET2023A301 MULTIPOLYGON (((439235.7 15...  830999755 [m^2]

The resulting area values, just like any other numeric calculations in sf, are returned as object of class units:

Code

class(ethR_shape$area)

[1] "units"

A units object is basically a numeric vector associated with units of measurement. We can transform units measurements to different units, with function set_units from package units.
First, we load the units library:
Then, we make the transformation to units:

Code

library(units)
ethR_shape$area = set_units(ethR_shape$area, "km^2")

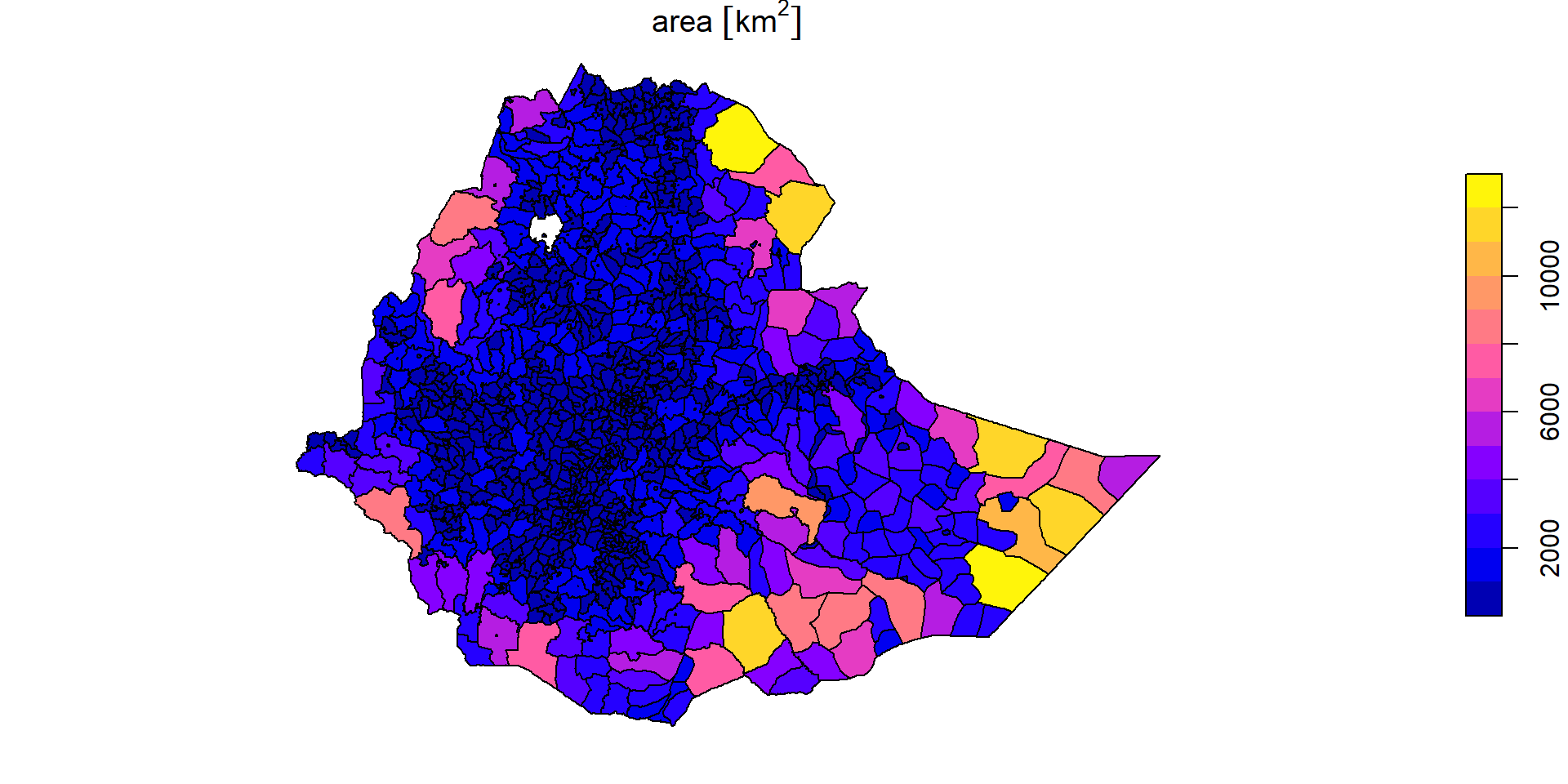

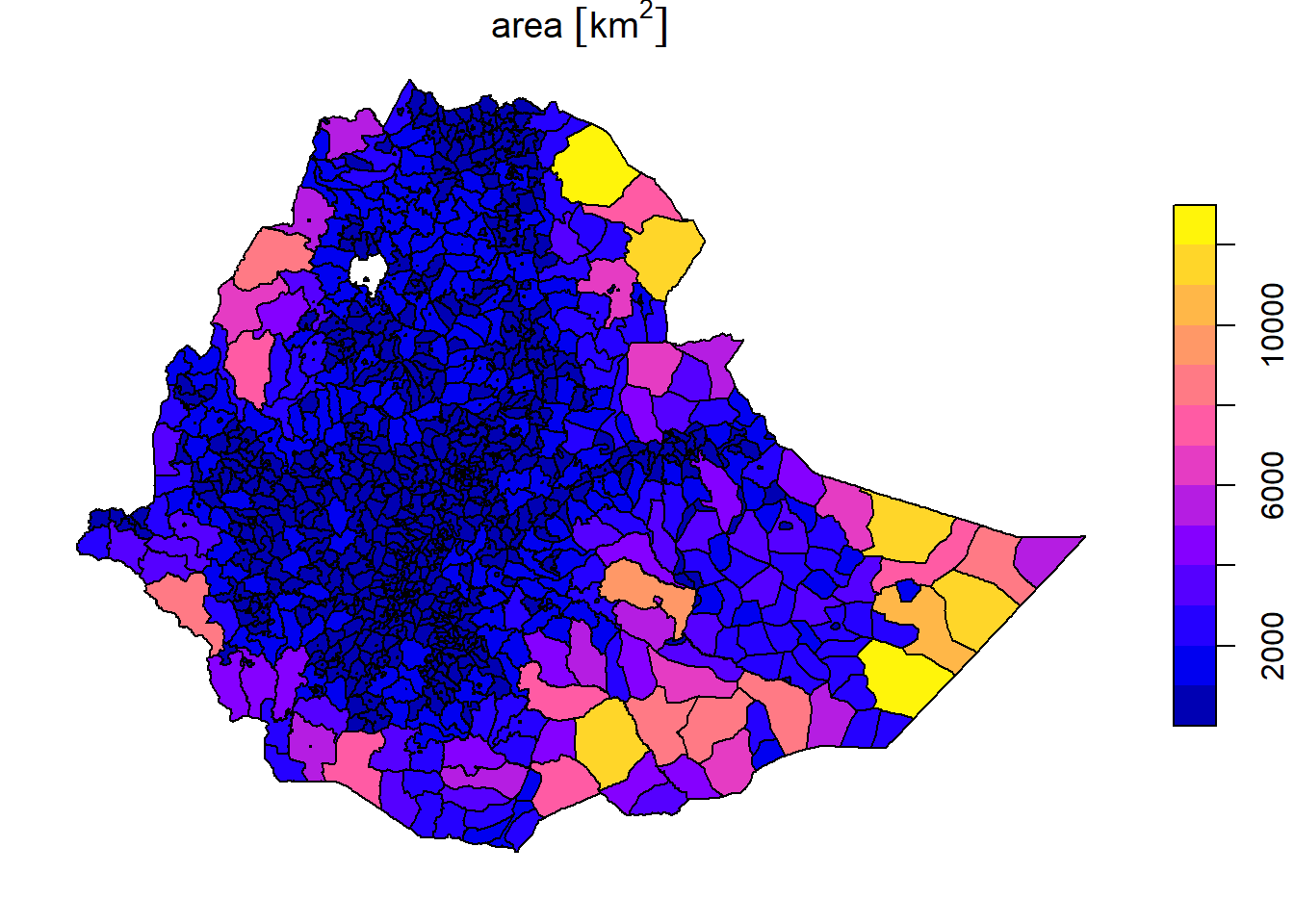

Code

plot(ethR_shape["area"])

Spatial

sf provides common geometry-generating functions applicable to individual geometries, such as:

st_centroid—Centroids
st_buffer—Buffer
st_sample—Random sample points
st_convex_hull—Convex hull
st_voronoi—Voronoi polygons

For example, to calculate the centroids of the “wored” polygons we can use the st_centroid function as follows:

Code

ethR_shape <- st_make_valid(ethR_shape)
ethR_shape_ctr = st_centroid(ethR_shape)

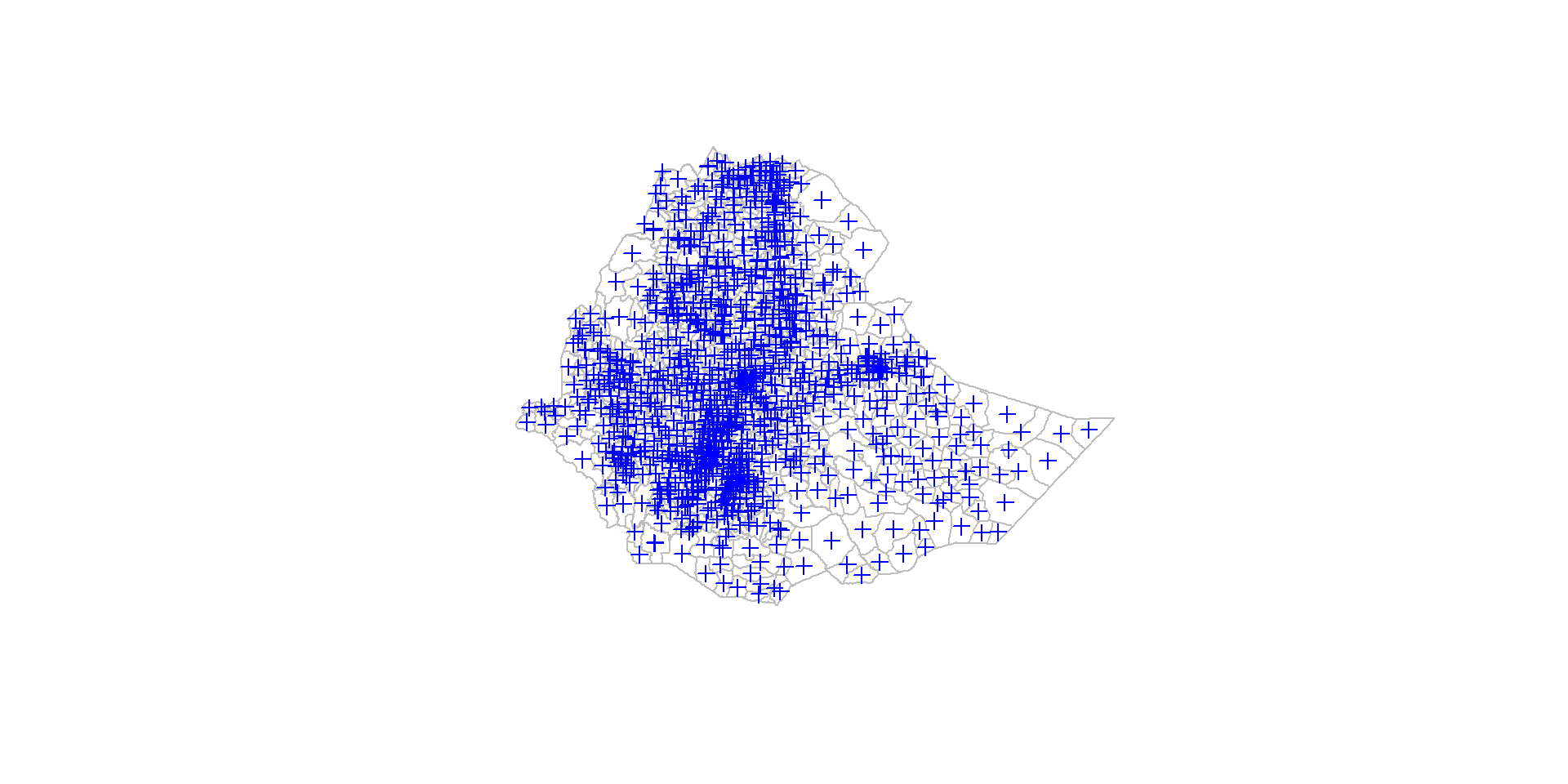

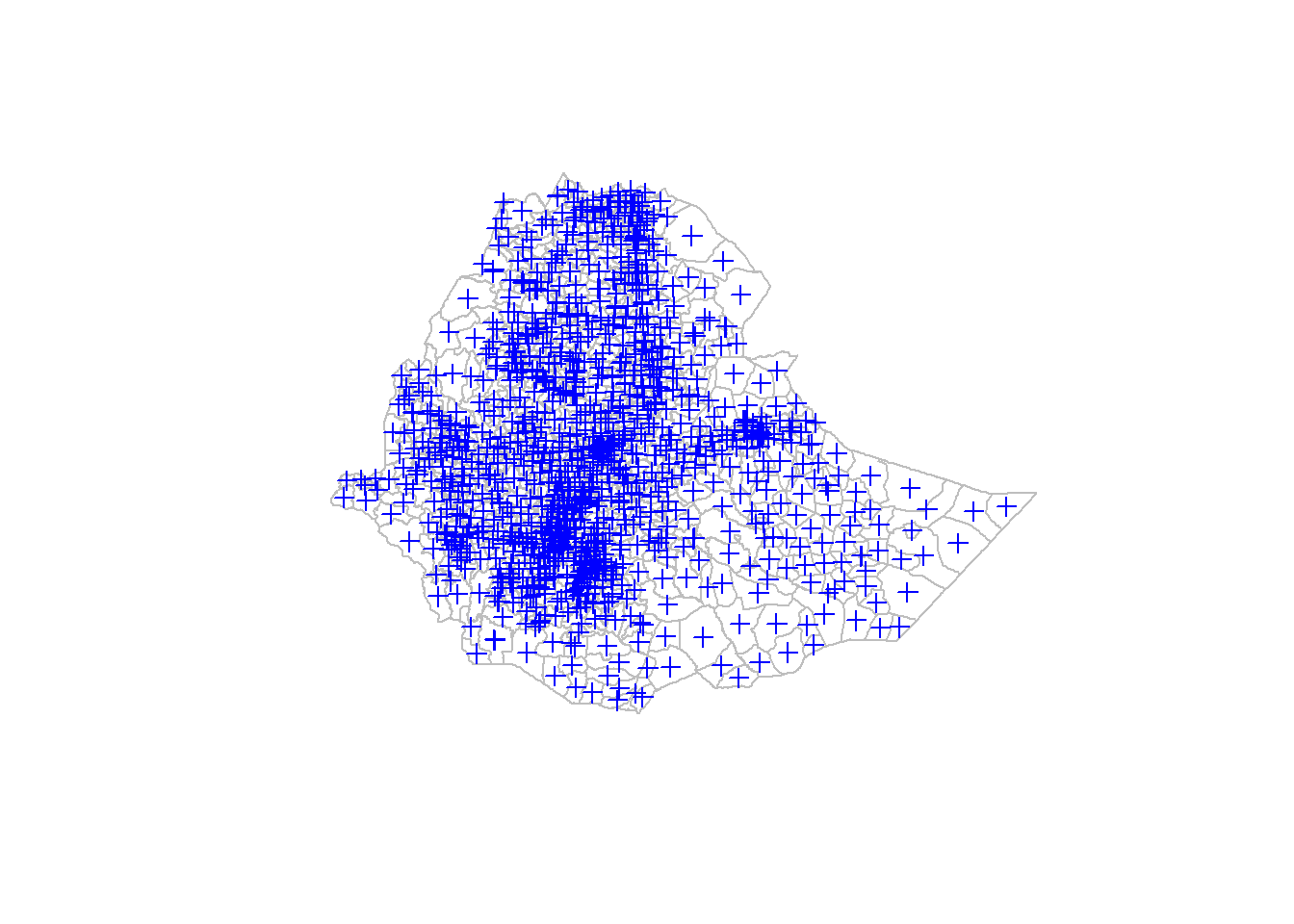

They can be plotted as follows

Code

plot(st_geometry(ethR_shape), border = "grey")
plot(st_geometry(ethR_shape_ctr), col = "blue", pch = 3, add = TRUE)

`stars`: Rasters

Geometric operations on rasters can be done with package stars:

Accessing cell values—As matrix / array, Extracting to points / lines / polygons
Raster algebra—Arithmetic (+, -, …), Math (sqrt, log10, …), logical (!, ==, >, …), summary (mean, max, …), Masking
Changing resolution and extent—Cropping, Mosaic, Resampling, Reprojection
Transformations—Raster <-> Points / Contour lines / Polygons

Overview of spatial and non-spatial data analysis framework

Coming soon!

Spatial Exploratory Data Analysis

Coming soon!

Investigating spatial dependence

Coming soon!

Spatial modeling framework

Coming soon!

Geostatistical Modeling

Coming soon!

Type Vector Data	Sub type Points: Represents features with a single coordinate pair (x, y). Ex.: Locations of ATMs, tree Lines: Represents linear features as ordered sequences of points. Ex.: Roads, rivers, utility lines Polygons (areas): Represents areas enclosed by closed loops of lines. Ex.: Buildings, lakes, zones

Raster Data	Grids: Represents continuous data across a surface. Satellite images, digital elevation models (DEMs) Pixels: Smallest units in a raster dataset, each with a specific value. Values representing color, temperature,
Additional information (Attribute data):	Describing the characteristics of spatial features. For example in Vector data: hospital: have hospiatl name, id, location, patient count, department Roads:have road type, traffic volume, maintenance status. In Raster Data: Each pixel can have multiple attributes, such as vegetation type or pollution levels.

File Type	Description and Extension
Shapefile	The most common geospatial file and the three mandatory files to make up a shapefile are. SHP is the feature geometry. SHX is the shape index position. DBF is the attribute data. Other optional files include these files, but they are not completely necessary. PRJ(projection system), XML (associated metadata), SBN(spatial index for optimizing queries), SBX (optimizes loading times).
GeoJSON	Geographic java sript Object Notation (.GeoJSON) encodes geographic features (points, lines, polygons) in JSON format. widely used format for online web mapping.
GML(Geography Markup Language)	allows for the use of geographic coordinates extension of XML. stores geographic entities (features) in the form of text. Each feature includes properties, geometry, and a spatial reference system.

File Type	Description
GeoTIFF (`.tif`, `.tiff`)	A widely used raster format that includes spatial metadata, allowing georeferencing of images.
JPEG2000 (`.jp2`, `.j2k`)	An advanced image compression format supports geospatial metadata for GIS applications.
Erdas Imagine (`.img`)	Used for remote sensing data in Erdas Imagine software.
ECW (Enhanced Compressed Wavelet) `.ecw`	A highly compressed raster format optimized for large satellite imagery and aerial photos.

Outlines ….. (1)

Outlines ….. (2)

Source, Format, and Types of Spatial Data

What is GIS? What is spatial data and why should we use it?

Spatial Data Formats

Spatial Data Formats Categorized by Type

Spatial Data Types

Vector Data: Overview

Raster Data: Overview

What are the most common Vector data formats?

What are the most common Raster data formats?

What are the components of spatial data

Coordinate Reference Systems (CRS):

Commonly Used EPSG Codes

CRS Formats

Basic R Packages for Spatial Data Analysis

Basic R Packages for Spatial Data Analysis

Install required Packages

`sf()` package

**`st_*()` functions**

Source of some free spatial data

download, read and understand Shapefiles with `sf`

Examine

Inspect key columns and summary:

Subsetting Spatial Data Frames

Spatial Transformations

Visualize the Data

st_geometry()

Geometric calculations

Numeric

Spatial

`stars`: Rasters

Overview of spatial and non-spatial data analysis framework

Spatial Exploratory Data Analysis

Investigating spatial dependence

Spatial modeling framework

Geostatistical Modeling
